316A (UNS S30416 / EN 1.4682) is a new-generation low-carbon austenitic stainless steel. It is designed as a direct replacement for 316L (UNS S31603 / EN 1.4404). Its core innovation is a Si-Mo synergistic passivation mechanism: silicon content offsets a major reduction in molybdenum content (molybdenum is reduced by over 75%), giving the passive layer performance equal to 316L. For forged pressure vessel piping, this means the same level of corrosion resistance can be achieved without changing existing forging, welding, heat treatment, or surface treatment processes, while significantly reducing alloy surcharges (saving up to 25%).
The latest validation study, presented at the 2026 AMPP Annual Conference (Paper No. C2026-00213), systematically compared S30416 with S31603. It covered electrochemical tests, ASTM B117 salt spray testing, and a modified ASTM G48 Method A ferric chloride immersion test. It concluded that S30416 provides equal or better corrosion resistance than S31603 in both base metal and laser-welded joints. The study clearly states that S30416 is the preferred material choice for marine engineering, chemical processing, and heat exchanger industries.
Element | C | Si | Cr | Ni | Mo | N |
% | 0.025 | 1.00 | 18.00 | 9.50 | 0.50 | 0.065 |
Standard | Grade |
UNS | S30416 |
EN | 1.4682 |
EN number | X2CrNiSi18-10 |
alternative | 316L（UNS S31603 / EN 1.4404） |
316A has been incorporated into the ASTM A240 standard system and is supplied under the grade S30416. In the field of forged pressure vessel piping, its forged parts can be manufactured and accepted under ASTM A965/A965M — a standard specifically covering austenitic stainless steel forgings for boilers, pressure vessels, and associated equipment, including the F304, F316, and F316L grade systems. For pipe flanges, forged fittings, and valve parts, ASTM A182/A182M can be applied. This standard covers forged or rolled alloy steel and stainless steel piping components for high-temperature service.

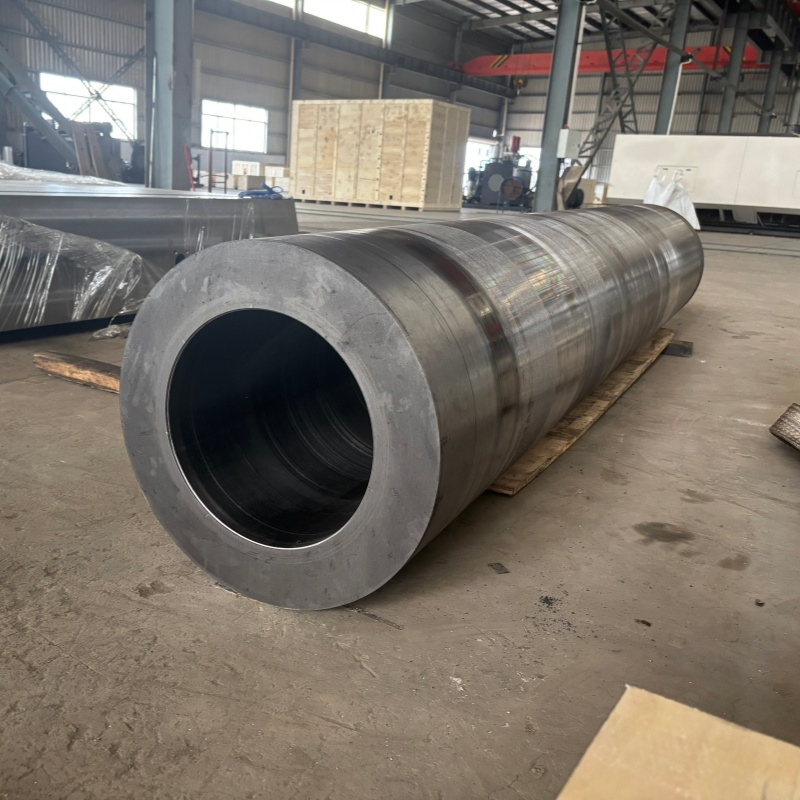

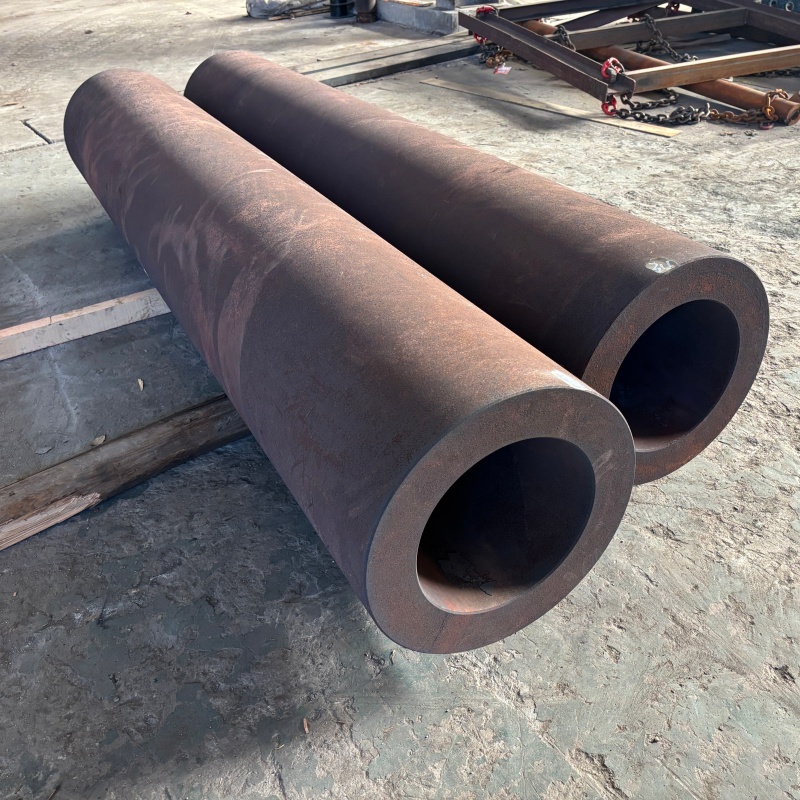

316A forged pressure vessel piping uses open-die forging or closed-die forging. It is suitable for making pressure-containing parts such as shell forgings, flanges, pipe fittings, valve bodies, and pump shafts. Because 316A is fully compatible with 316L in formability, no changes are needed to existing forging process parameters, including forging temperature range, deformation rate, and tooling design. The material has been verified by the Forming Limit Curve (ISO 12004-2) and the Limiting Drawing Ratio (NF EN 1669). Under complex forming conditions, it performs the same as 316L.
After forging, parts must undergo solution annealing. For austenitic stainless steel, the solution temperature is usually controlled between 1010–1150°C to fully dissolve carbides and sigma phase, followed by rapid water quenching to prevent sensitization. For large 316A forgings, the recommended solution temperature is 1050–1120°C. Holding time is calculated by cross-section thickness (about 1–5 minutes/mm), and parts are water-cooled immediately after removal from the furnace. This treatment ensures a single austenitic structure in the forging and restores the best intergranular corrosion resistance.
CCUS (Carbon Capture, Utilization, and Storage) Systems: 316A forgings are used in pressure vessels, piping, and heat exchangers in CCUS systems. Carbon capture processes often involve wet, acidic environments containing CO₂, which place clear demands on a material's resistance to uniform corrosion and pitting corrosion.
Electrolyzers: Used for bipolar plate and end plate forgings in water electrolysis hydrogen production equipment. A stable passive layer is required in environments containing chloride ions or alkaline electrolytes.
Marine and Transport Tanks: Forged connectors for IMO-type tank containers, tank truck bodies, and marine piping systems, serving in marine atmospheres and chloride media.
Chemical Processing and Pharmaceuticals: Reactor internals, pump and valve forgings, exposed to acidic or chloride-containing process media.
Water Treatment and Food Processing: Complies with NSF/ANSI 51 and FDA food contact material requirements. Suitable for pressure-containing piping components in water treatment and food processing equipment.
Is 316A really equivalent to 316L in corrosion resistance?
Yes. A study published at the 2026 AMPP Annual Conference systematically compared S30416 and S31603 in base metal and laser-welded specimens through electrochemical testing, ASTM B117 salt spray testing, and a modified ASTM G48 ferric chloride immersion test. It concluded that S30416 has equivalent or better corrosion resistance. ISO 3651-2 Method A intergranular corrosion testing also confirmed that 316A maintains good intergranular corrosion resistance after sensitization at 700°C for 30 min.
Can 316A forgings directly replace existing 316L forgings, and does pressure vessel certification need to be redone?
316A is designed as a “plug-and-play” replacement. Its forging, welding, heat treatment, and surface treatment process parameters are fully consistent with those of 316L. At the standards level, 316A is included in the ASTM A240 system as UNS S30416 and can be manufactured and accepted under the ASTM A965/A965M forging standard. Material substitution in a specific project requires approval by the designer and regulatory authority, but we can provide complete material certificates, mechanical property reports, and corrosion test data to support the certification process.
What are the mechanical properties of 316A forgings?
The mechanical properties of 316A are equivalent to those of 316L, including tensile strength, yield strength, elongation, and work-hardening characteristics, all verified by tensile tests in accordance with NF EN ISO 6892-1. The strength of laser-welded joints is slightly higher than that of 316L welded joints, providing an additional safety margin for welded pressure-containing components.
Where does 316A’s alloy cost advantage come from?
316A reduces the molybdenum content from about 2–3% in 316L to about 0.5%, cutting molybdenum use by more than 75%, and uses silicon to compensate for passivation performance. Because molybdenum is one of the most price-volatile alloying elements, this formulation adjustment reduces the alloy surcharge by up to 25%. For large-volume forged pressure vessel piping projects, the material cost savings are significant.
Are 316A forgings suitable for high-temperature pressure vessels?
316A is a low-carbon austenitic stainless steel and is positioned in design terms the same as 316L. Under the ASTM A965/A965M standard framework, the range of pressure vessel and high-temperature component applications it can cover is the same as that of F316L forgings. For allowable stress at a specific design temperature, it is recommended to calculate according to the allowable stress tables for S30416 in ASME BPVC Section II-D.
