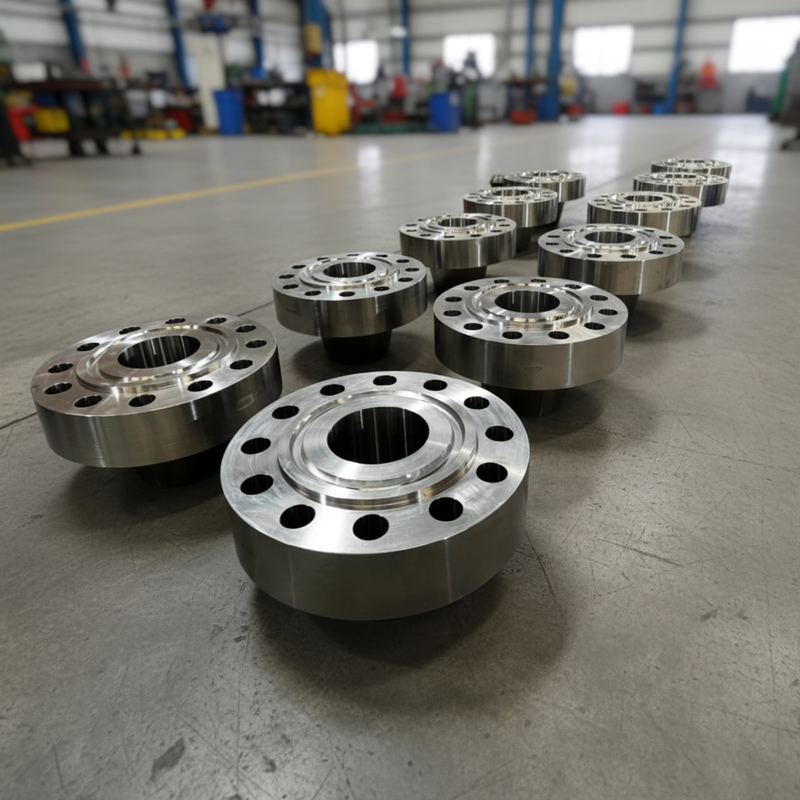

Forging organization optimization: Forging deformation eliminates internal looseness/porosity, forms dense fiber flow, improves strength and fatigue resistance, far superior to castings;
Heat treatment can be customized: H900 pursues the highest strength (tensile strength ≈ 1310MPa); H1150 balances toughness and stress corrosion resistance;
Moderate corrosion resistance: The corrosion resistance to atmosphere, dilute acid, steam, and neutral salt solution is close to 304, suitable for non strong chlorine working conditions;
High dimensional accuracy: sealing surface roughness Ra ≤ 1.6 μ m, bolt hole position accuracy ± 0.1mm, suitable for long-term sealing of metal winding gaskets/graphite composite gaskets;
Weldable+Machinable: The solid solution state is easy to process, and after welding, it needs to be re aged to restore its performance.
element | C | Cr | Ni | Cu | Nb+Ta | Mn | Si | P | S |
content | ≤0.07 | 15.0–17.5 | 3.0–5.0 | 3.0–5.0 | 0.15–0.45 | ≤1.0 | ≤1.0 | ≤0.04 | ≤0.03 |
performance | Tensile strength (Rm) | Yield strength (Rp0.2) | Elongation (A5) | Hardness (HRC) |
numerical values | ≥1000 MPa | ≥860 MPa | ≥10% | 30–36 |
Forging: Select S17400 electric slag remelting/vacuum arc remelting steel ingots, hot forging in the range of 1120-1180 ℃, three-way upsetting+elongation, forging ratio ≥ 3, thoroughly break the casting structure; Timely stress relief annealing after forging
Heat treatment: Solid solution 1040 ± 15 ℃, water-cooled/oil cooled; Select H900 or H1150 aging according to operating conditions
Non destructive testing: 100% ultrasonic testing (UT, according to ASTM A388); Surface MT/PT testing; The roughness of the flange sealing surface Ra is ≤ 1.6 μ m; Dimensional tolerances shall be in accordance with ASME B16.5 Class 150-2500
Surface treatment: Acid pickling passivation (ASTM A967), removal of oxide scale, strengthening of passivation film
High pressure shell and tube heat exchanger: tube box flange, tube plate flange integrated piece, medium is steam, synthetic ammonia, organic acid;
Pressure vessel connecting flange: inlet and outlet of reaction kettle and storage tank, pressure 10-35 MPa;
Desalination of seawater/papermaking: below 300 ℃, medium chloride ion concentration environment;
Nuclear grade auxiliary systems: control rod drive mechanism, waste heat exchanger.
