Duplex stainless steels like 2205 and 2507 are metallurgical marvels, achieving a unique balance of high strength and excellent corrosion resistance through their dual-phase ferrite-austenite microstructure.

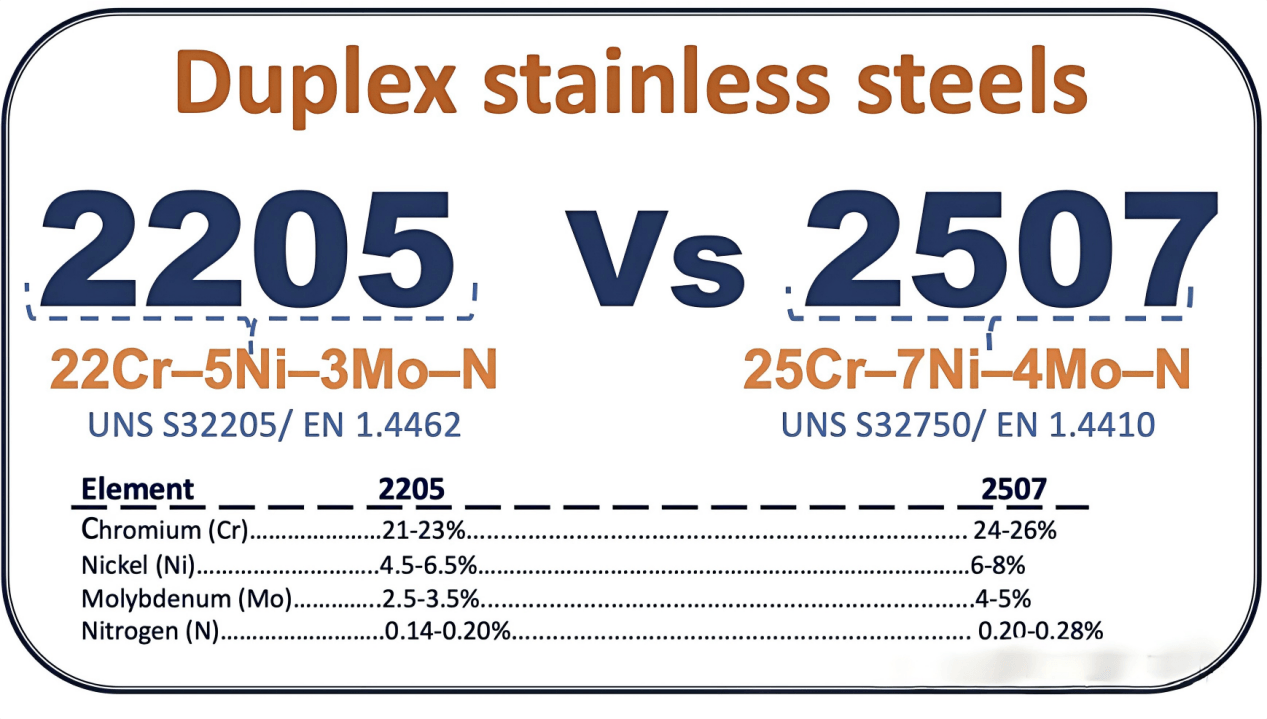

The key differentiator lies in their chemical composition: 2507, classified as a "super duplex," boasts significantly higher chromium, molybdenum, and nitrogen content than 2205.
This elevated alloying in 2507 directly translates to superior mechanical properties, including higher tensile and yield strengths, and, critically, enhanced corrosion resistance, particularly against pitting and crevice corrosion, as evidenced by its higher Pitting Resistance Equivalent Number (PREN).
2205 (Standard Duplex): Typical PREN ≈ 33–35.
2507 (Super Duplex): Typical PREN > 40.
However, this increased alloying also makes 2507 more susceptible to the formation of detrimental intermetallic phases like sigma ($\sigma$) phase if not properly processed, demanding stricter control over welding heat input and thermal cycles.
The choice between 2205 and 2507 ultimately depends on the severity of the operating environment:
2205: Provides robust performance in moderately corrosive, chloride-containing applications, offering a cost-effective solution for a wide range of industries.
2507: Engineered for the most aggressive conditions, excelling in highly corrosive, high-chloride, or sour environments where 2205 might fall short.
