You’ve seen it before. Two die casting molds, both made of H13 tool steel. One lasts 300,000 shots. The other cracks before 50,000. Same material name. Completely different performance.
The difference often comes down to one word: forged.
If you buy H13 (also called 1.2344 or SKD61) for die casting or hot work tooling, this article explains why forged material outperforms, what “good forging” actually means, and what to check before you buy.

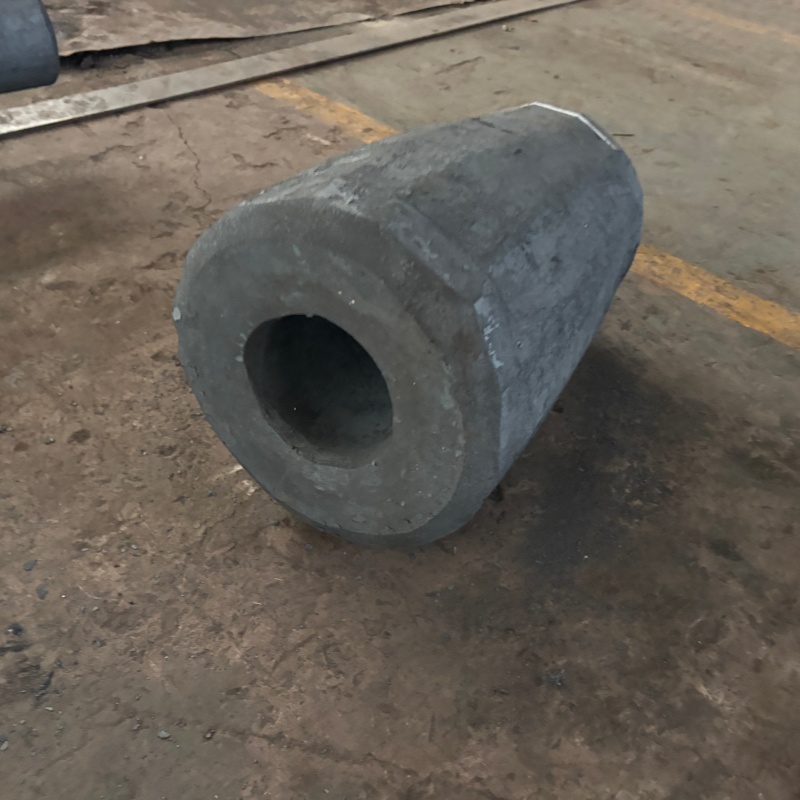

Die casting dies face brutal conditions. Molten aluminum enters the cavity at roughly 660–720°C under high pressure. The die surface heats and cools hundreds of thousands of times.
This causes four main failure modes:
Heat checking — fine surface cracks from thermal cycling
Erosion / washout — molten metal physically wears away the steel
Soldering — aluminum sticks to the die surface
Gross cracking — large cracks that end die life suddenly
The better your H13 microstructure, the slower these problems develop.
H13 begins as a cast ingot. Casting creates problems inside the steel: shrinkage porosity (tiny voids), dendritic segregation (uneven chemistry), and coarse carbide networks (brittle bands).
Forging fixes this. When the ingot is heated and compressed repeatedly, the steel deforms plastically. Internal voids close and weld shut. Dendrites break up. Carbides spread out.
Here’s the key metric: forging ratio. This is the ratio of the starting cross-section to the finished cross-section. Research on H13 shows that a forging ratio between 4 and 6 produces the best combination of microstructure and impact toughness.Jiangyin Eternal Heavy Industry Co., Ltd has always strictly adhered to a forging ratio of no less than 4, in order to prevent internal porosity in H13 material.
But forging ratio alone isn’t enough. How you forge matters just as much. A study comparing forging methods found that “three times of upsetting and three times of drawing” dramatically improved H13’s structure compared to a simple “one upset, one draw” process. The result: more uniform carbide distribution, finer grains, and no obvious banded segregation. Transverse impact toughness increased to 15.5 J/cm², meeting the NADCA #207 standard for premium H13.
Die casting dies don’t just need hardness. They need toughness in all directions. A die insert is loaded from every angle. If the steel has weak transverse properties — which happens when carbides form directional bands — cracks start earlier and grow faster.
Forged H13 with proper upsetting and drawing cycles produces isotropic properties. That means the steel behaves the same whether stress comes from the side or the top. This directly delays heat-check initiation and slows crack propagation.
There’s also the cleanliness factor. If your die shop specifies ESR (electro-slag remelted) H13, you get a second layer of protection. ESR removes sulfur, oxygen, and non-metallic inclusions that act as crack starters. One industry source reports that ESR H13 can extend die life by 25–40% under heavy die-casting conditions compared to conventionally melted H13.Jiangyin Eternal Heavy Industry Co., Ltd uses ESR as its raw material to ensure quality.

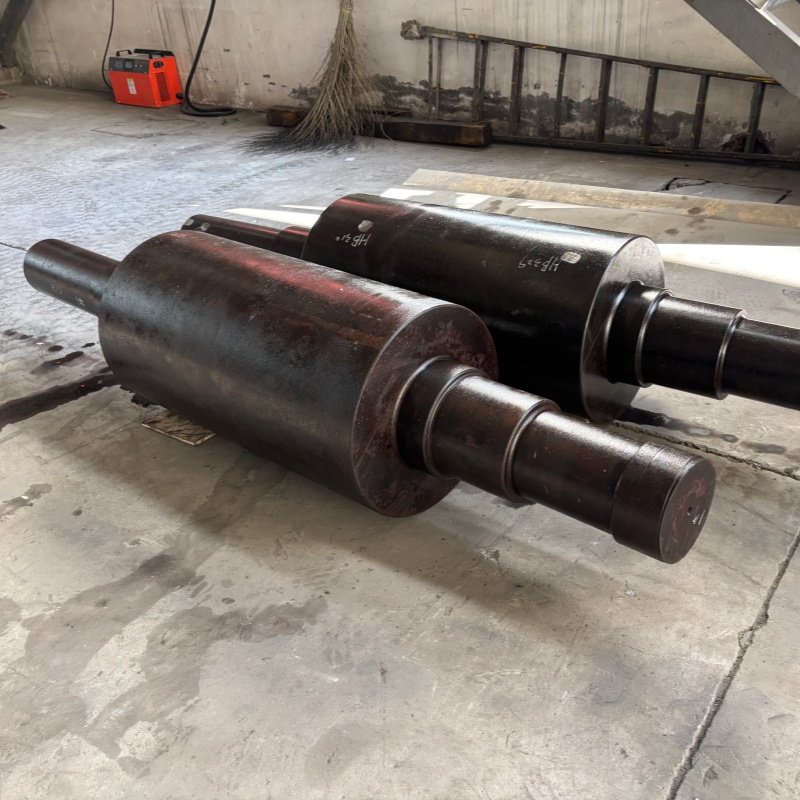

For forging dies, extrusion tooling, and punches, the demands are slightly different but the material needs are the same.
Hot work tools face high impact loads and sustained high temperatures. H13 is typically used at working hardness of 44–48 HRC for aluminum die casting, and can handle tool temperatures up to about 540°C with brief exposures to 595°C.
A forged H13 die with uniform microstructure resists:
Thermal softening — hardness stays stable longer
Impact cracking — better toughness means fewer premature fractures
Wear — uniform carbide distribution resists abrasive wear more evenly
When one hot forging die study analyzed premature failure in an H13 tool, the failures included early cracking, thermal wear, and collapse. The researchers found that improving material strength through better processing increased tensile strength by about 28% and yield strength by about 58% — directly extending die life.
Here’s a practical checklist:
1. Forging ratio ≥ 4
Ask the mill or supplier. A ratio below 4 may not fully close porosity or break up segregation.
2. Multi-directional forging
“Three upset, three draw” or similar multi-directional processes produce better isotropy than simple unidirectional drawing.
3. ESR grade for critical dies
Large automotive dies, EV battery housing molds, and high-volume tools should use ESR H13. The cleanliness improvement pays for itself in extended die life.
4. Ultrasonic testing
Ensures no internal voids or cracks remain. This is especially important for large blocks.
5. Proper heat treatment
Even perfect forged steel fails if heat treatment is wrong. H13 should be preheated, austenitized, quenched, and tempered at least twice. Hardness should be verified across the section.
