D2 tool steel is a high-carbon, high-chromium cold-work tool steel that has become one of the most specified grades in die-making, stamping, and cutting tool applications worldwide. If you are sourcing tool steel and keep encountering D2, A2, 1.2379, or SKD11, this article will clarify what D2 actually is, how it compares with A2 steel, what its international equivalents are, and what recent developments in the industry mean for buyers and toolmakers.
D2 steel is an air-hardening tool steel with a nominal composition of approximately 1.5% carbon, 12% chromium, 1% molybdenum, and 1% vanadium. This chemistry produces a microstructure rich in large chromium-rich alloy carbides, which are the source of D2’s signature property: exceptional wear resistance. In the hardened condition, D2 typically achieves a working hardness of 60–62 HRC, and it is widely used for blanking dies, forming rolls, slitting knives, thread rolling dies, and wear plates.
The “air-hardening” designation is significant. Unlike oil-hardening grades such as O1, D2 can be quenched in air or gas, which reduces distortion and makes it more forgiving for precision tooling where dimensional stability matters. For forging suppliers, this also means D2 forgings can be supplied in the annealed condition and heat-treated by the customer with relatively predictable results.
The name comes from the AISI tool steel classification system, where the letter prefix identifies the sub-family. The “D” series denotes high-carbon, high-chromium cold-work tool steels that are air-hardening. D2 is the most widely used grade within that series, and its designation is recognized by ASTM A681, the primary U.S. standard for tool steel.
This is one of the most common comparisons in tool steel sourcing, and the answer depends on the failure mode you are trying to avoid.
Property | D2 | A2 |
Carbon | ~1.5% | ~1.0% |
Chromium | ~12% | ~5% |
Vanadium | ~1% | ~0.2% |
Typical working hardness | 60–62 HRC | 57–62 HRC |
Wear resistance | Excellent | Moderate to good |
Toughness | Lower | Higher |
A2 is a medium-alloy air-hardening tool steel with about 5% chromium and 1% carbon. It is tougher than D2 but offers lower wear resistance. In practice, A2 is often specified for punches, trim dies, and thread taps where D2’s brittleness may lead to chipping at sharp corners or thin sections. D2, by contrast, is the better choice when abrasive wear is the dominant failure mode and the tool geometry does not concentrate stress at sharp edges.
For a forging supplier, the practical implication is that both grades can be supplied as forged bar, plate, or custom shapes, but the forging and heat-treatment parameters differ. D2 requires more careful control of forging temperature — typically in the range of 2000–2100°F (1093–1149°C) — and should not be forged below 1700°F to avoid cracking. Slow cooling in vermiculite or an insulating medium after forging is standard practice.
D2 is specified under different national and regional standards, which is a frequent source of confusion for international buyers. The most important equivalents are:
USA | AISI D2, ASTM A681, UNS T30402 |
Germany | DIN 1.2379, EN X153CrMoV12 |
Japan | JIS SKD11 |
China | GB Cr12Mo1V1 |
UK | B.S. BD2 |
Sweden | SS 2310, Uddeholm Sverker 21 |
This equivalence is well established in supplier documentation and standards references. When a drawing specifies “1.2379” or “SKD11,” it is referring to the same grade family as AISI D2, and a competent D2 steel supplier should be able to confirm cross-reference compliance before shipment.
D2’s combination of wear resistance, hardness, and dimensional stability makes it suitable for a broad range of cold-work applications. Common end uses include:
Blanking and piercing dies for sheet metal
Forming rolls and extrusion dies
Slitting knives and shear blades
Thread rolling dies and knurls
Gauges, master parts, and wear plates
In high-volume stamping operations, D2 is often the default choice because it maintains a sharp cutting edge far longer than lower-alloy cold-work steels. The trade-off is that D2 is less forgiving than A2 under impact loading, so tool design must account for its lower toughness.
The D2 tool steel landscape has seen meaningful technical activity in 2025 and 2026, particularly in two areas that matter to toolmakers and buyers.
Additive manufacturing of D2. A 2025 study published in Materials & Design demonstrated that AISI D2 tool steel can be successfully produced via metal material extrusion additive manufacturing (M-MEX), followed by post-heat treatment. The MEX D2 exhibited near-spherical carbides in the 2–5 μm range, compared with coarse carbides exceeding 5 μm in wrought D2. After heat treatment, the MEX D2 achieved a tensile strength of approximately 2.09 GPa — a 15.5% increase over heat-treated wrought D2 — along with a substantial improvement in elongation. This is significant because it suggests that additive manufacturing may offer a route to D2 tooling with finer carbide distribution and improved mechanical performance, particularly for complex geometries such as conformal cooling channels.
Deep cryogenic treatment. Research published in 2025 and 2026 continues to refine the understanding of deep cryogenic treatment (DCT) on D2. A 2025 study in a Slovenian research repository investigated cyclic deep cryogenic treatment (CDCT) on AISI D2 cold-work tool steel, examining its effects on microstructure and mechanical performance. The practical takeaway for toolmakers is that cryogenic treatment — typically down to -196°C — is increasingly used to reduce retained austenite and improve dimensional stability, though the effects on toughness require careful evaluation depending on the specific heat-treatment cycle.
Industry adoption signals. In late 2025, precision components manufacturer Bhuj Polymers invested in a new vacuum furnace specifically to process high-thermal-requirement tool steels including D2, H13, and H11 for tools, dies, and rolls. In July 2025, the digital manufacturing platform meviy added D2 tool steel as a CNC milling material option, citing its suitability for high-cycle, high-load environments where precision and long-term durability are critical. These signals indicate that D2 remains a specification of choice in production tooling, not merely a legacy grade.

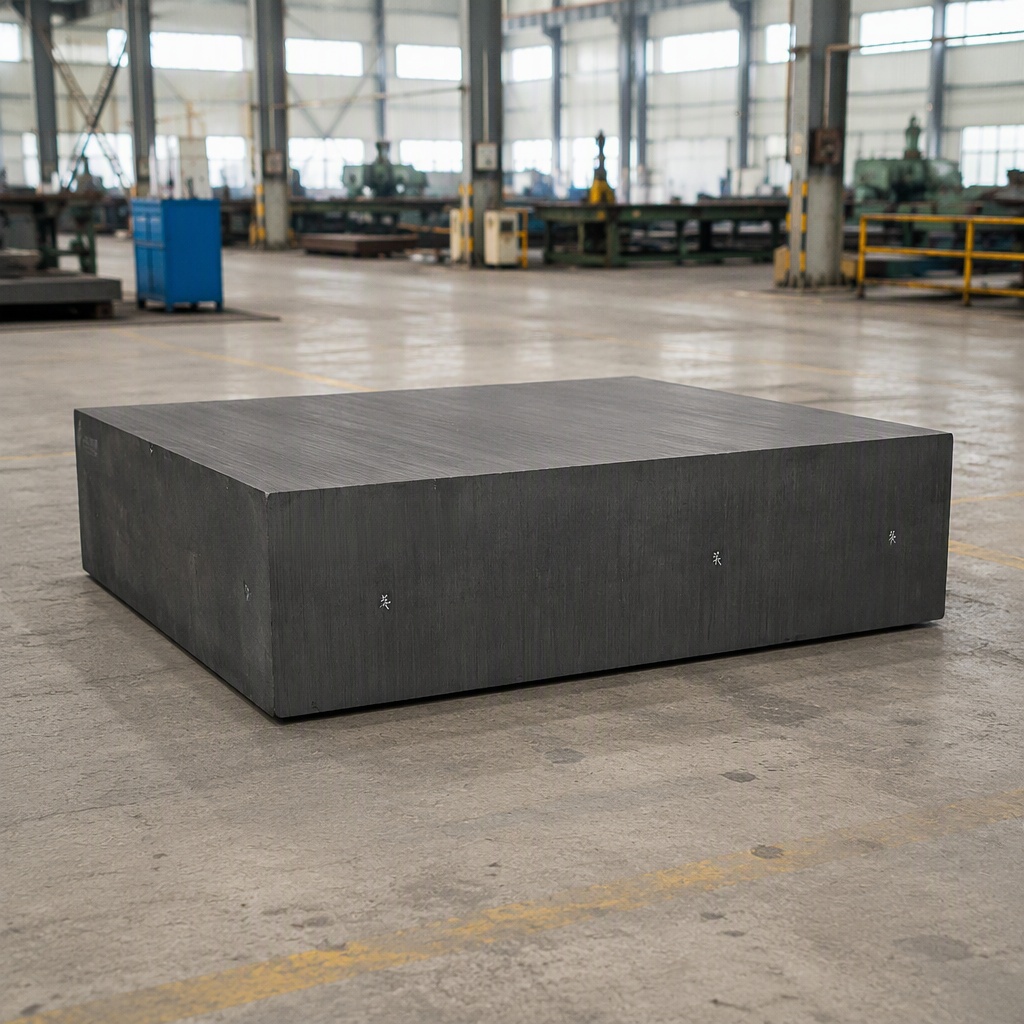

When sourcing D2 tool steel, the form and condition of supply matter as much as the grade designation. D2 is available as forged round bar, square bar, flat bar, and custom forgings, typically supplied in the annealed condition with a hardness in the range of approximately 250 HB maximum to facilitate machining.
As a forging supplier with in-house forging capability ,Jiangyin Eternal Heavy Industry Co.,Ltd can offer several advantages for D2:
Custom cross-sections and near-net shapes that reduce machining stock and lead time
Controlled forging parameters to minimize carbide segregation and avoid forging defects
Traceability from furnace to finished bar, which is increasingly required by aerospace, automotive, and precision tooling customers
Consistent annealed structure suitable for downstream heat treatment
For buyers evaluating a D2 tool steel supplier, the key questions are: Does the supplier forge D2 in-house or merely distribute it? Can they provide test certificates confirming chemistry and hardness? Do they understand the grade’s heat-treatment sensitivities well enough to advise on downstream processing?
D2 tool steel occupies a well-defined position in the cold-work tool steel landscape: higher wear resistance than A2, better dimensional stability than oil-hardening grades, and a global equivalence network that makes it universally specifiable. For forged tooling components, it remains one of the most reliable choices available — and with ongoing advances in additive manufacturing and cryogenic treatment, its performance envelope continues to expand.
