Surface induction hardening is a heat treatment process that hardens only the outer layer of a metal part while leaving the core soft and tough. This creates a hard, wear-resistant surface and a tough, shock-resistant interior—exactly what cold rolling mill rolls need to survive extreme conditions.
In cold rolling mills, work rolls are the most critical yet vulnerable components. They must withstand high pressure, thermal shock, and constant abrasion without losing surface quality. Surface induction hardening is the preferred method to give these rolls the performance they need.
The principle is based on electromagnetic induction and the skin effect.
Here's how it works in plain terms:

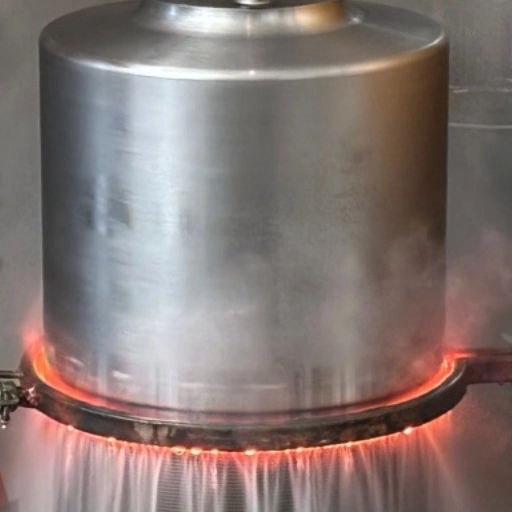

The roll is placed inside an induction coil – a copper ring or loop that carries an alternating electric current.
The current creates a magnetic field around the roll.
This magnetic field generates electric currents (eddy currents) inside the roll's surface.
These currents heat the surface extremely fast – in seconds, not hours.
The heated surface is immediately sprayed with water to cool it rapidly.
The rapid cooling transforms the surface structure into a hard phase called martensite, giving it exceptional hardness.
The key here is the skin effect: higher frequency currents heat only a thin surface layer, while lower frequencies penetrate deeper. For large cold rolling rolls, power frequency (50 Hz) is typically used, achieving hardening depths of 10–15 mm or more.

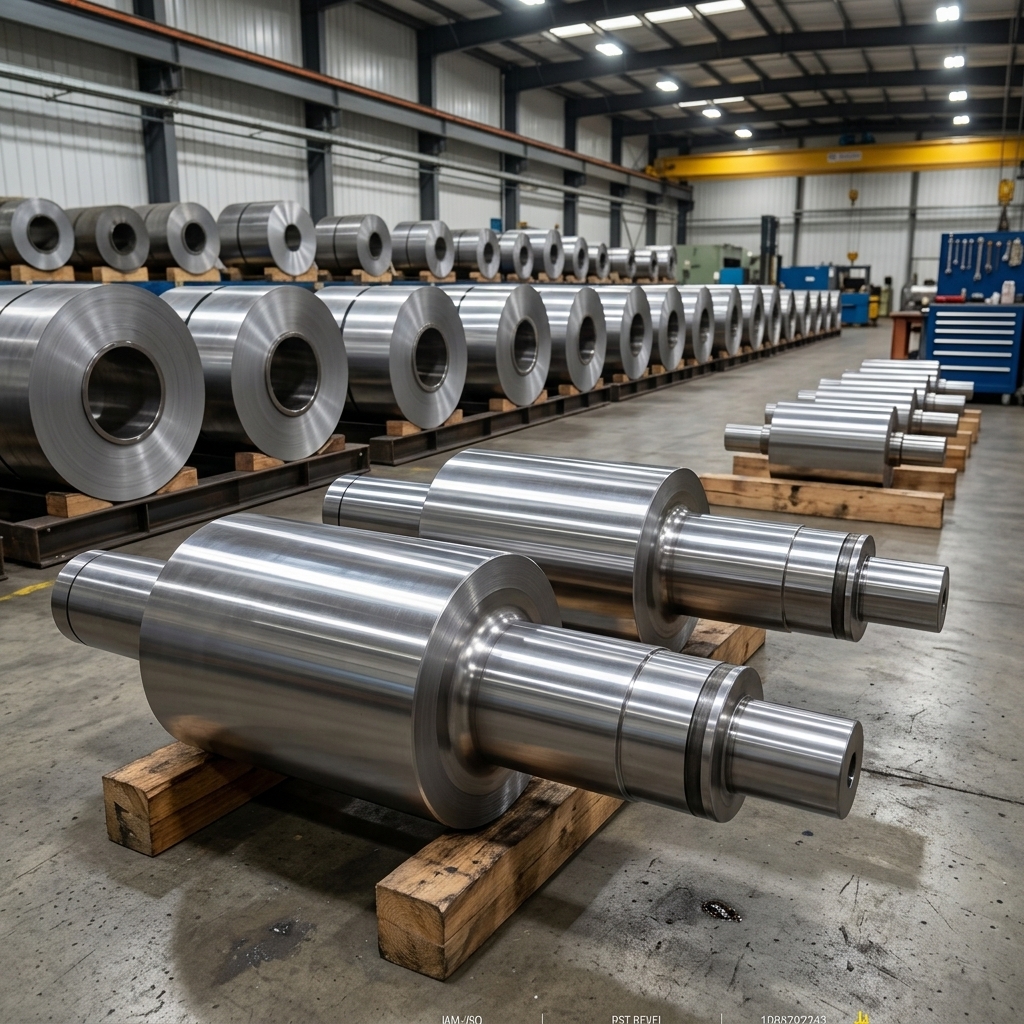

Cold rolling rolls are the heart of any cold rolling mill. They squeeze steel sheets to reduce thickness and improve surface quality. This means they face:
Extreme wear from constant contact with steel
High pressure from the rolling force
Thermal shocks from temperature changes
Mechanical stresses from bending and torsion
Surface induction hardening solves these challenges by creating a roll with two distinct zones:
Zone | Property | Benefit |
Surface (hardened layer) | Extremely hard (60+ HRC) | Excellent wear resistance, resists indentation |
Core (untreated) | Tough and ductile | Absorbs impact, prevents breakage |
After induction hardening, the surface layer develops residual compressive stress, while the core develops residual tensile stress. This stress pattern actually improves fatigue strength and makes the roll more resistant to cracking.
Unlike overall hardening, induction hardening heats only the surface. This means:
Less distortion and warping
No need to drill center holes for cooling
Lower energy consumption
Minimal oxidation or decarburization
Based on decades of research and numerous patents, here are the critical parameters that determine success:
The choice of frequency determines hardening depth:
Frequency | Typical Depth | Application |
High frequency (200–300 kHz) | 1–2 mm | Small parts, thin layers |
Medium frequency (2.5–8 kHz) | 2–10 mm | Medium-sized shafts, gears |
Power frequency (50 Hz) | 10–15+ mm | Cold rolling rolls |
For large cold rolls, power frequency (50 Hz) is the standard choice because it provides the deep hardening layers needed.
The roll surface must be heated to 950–1030°C – well above the steel's transformation temperature. This ensures complete transformation to austenite before quenching.
After heating, the roll is sprayed with water at 15–30°C. The water pressure is typically 0.2–0.4 MPa. This rapid cooling "freezes" the hard structure in place.
The roll moves through the induction coil at a controlled speed. Research shows that slower feed rates create deeper hardened layers. One study found that reducing the feed rate from 36 mm/min to 24 mm/min increased hardening depth from 16 mm to 25 mm – a 56% increase.
After hardening, the roll undergoes tempering at 120–200°C for 80–120 hours. This relieves internal stresses and prevents brittleness. Some processes also include deep cryogenic treatment at -80 to -120°C to further improve properties.
Modern cold roll manufacturing often uses multiple inductors or dual frequencies to achieve even better results.
This technique combines two frequencies simultaneously or sequentially. For example, one patent describes using three inductors in sequence: two low-frequency (40–60 Hz) and one medium-frequency (200–300 Hz). This creates a uniform hardened layer over 50 mm deep.
Another approach uses double induction hardening with a movement speed of 0.3–1.0 mm/s. This produces excellent hardness distribution with minimal distortion.
These advanced methods can achieve hardened layer depths of 50 mm or more, dramatically extending roll life.
Surface induction hardening isn't just theory – it's proven technology used worldwide.
Chinese steel mills have successfully applied dual-frequency induction hardening to cold work rolls. One domestic manufacturer produced about 400 rolls for a major cold rolling mill complex using this technology, generating millions in savings.
Recent research on tool-grade steel cold rolls (with 8% chromium) showed that induction hardening can eliminate the need for chrome plating. Chrome plating is effective but environmentally harmful due to toxic acid baths. Induction hardening offers a greener alternative with comparable or better performance.
Specialized converter technology now enables induction hardening of extremely large rolls weighing several tons, achieving hardening depths of several centimeters.
Surface induction hardening is a sophisticated yet straightforward process: heat the surface with electricity, cool it fast, and get a super-hard exterior with a tough interior. For cold rolling mill rolls, this means longer life, better performance, and lower costs.
Whether you're a roll manufacturer, a mill operator, or just someone interested in metallurgy, understanding this technology is essential. It's not just about making rolls harder – it's about making them last longer, perform better, and cost less over their entire service life.
The technology continues to evolve, with dual-frequency systems, advanced converters, and numerical simulation pushing the boundaries of what's possible. As environmental regulations tighten and productivity demands increase, surface induction hardening will only become more important.
