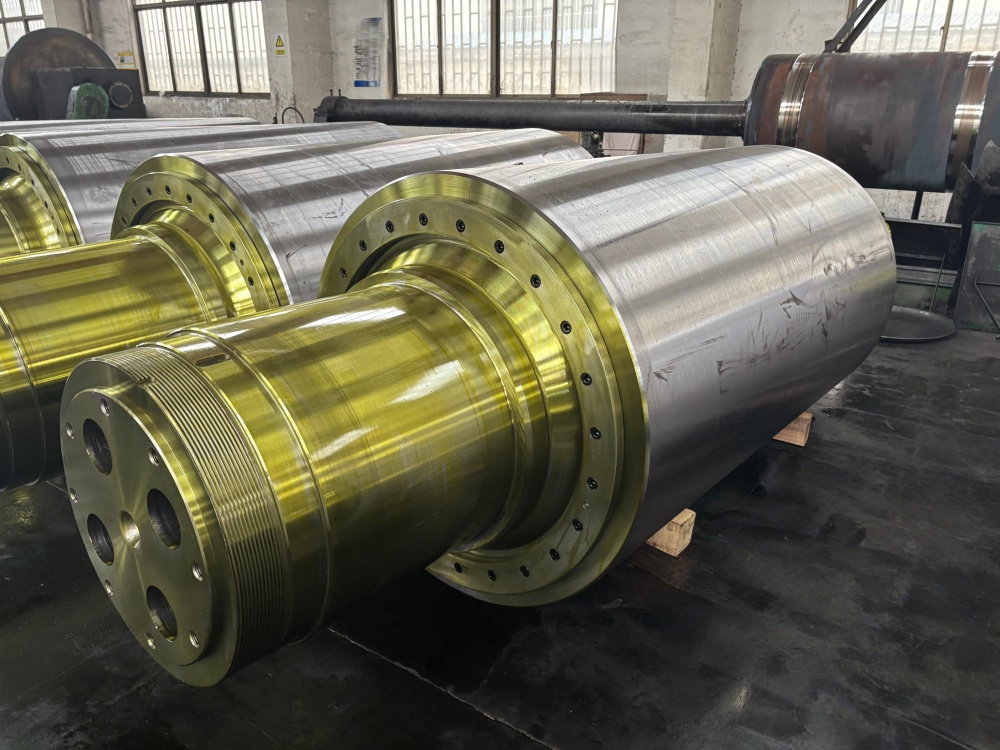

In the rapidly evolving landscape of non-ferrous metal processing, the quality of cold rolling mill rolls directly determines production efficiency, product quality, and operational costs. The global cold rolling mill market was valued at USD 6.37 billion in 2024 and is projected to reach USD 8.4 billion by 2035, growing at a CAGR of 2.6%. Simultaneously, the four-roll reversible cold rolling mill market—a key segment for processing copper and aluminum—is expected to grow from USD 2.188 billion to USD 3.099 billion by 2031 at a CAGR of 5.1%. This growth is driven by surging demand from automotive, aerospace, electronics, and construction sectors for high-quality thin-gauge non-ferrous products.
1.1 ASTM A788/A788M – The Foundation for Steel Forgings
ASTM A788/A788M establishes the general requirements applicable to all steel forgings supplied under any ASTM product specification unless otherwise specified in the individual product standard. For cold rolling mill rolls, this standard serves as the baseline document that governs:
General manufacturing requirements – melting processes, forging procedures, and heat treatment protocols
Chemical composition analysis – melt analysis requirements and product analysis tolerances
Mechanical property testing – tensile, hardness, and impact testing methods
Non-destructive examination – ultrasonic, magnetic particle, and liquid penetrant inspection
Certification and marking – documentation requirements and product identification
Key provision: When requirements conflict between A788 and the individual product specification, the latter prevails.
ASTM A427/A427M, titled Standard Specification for Wrought Alloy Steel Rolls for Cold and Hot Reduction, is the core document specifically governing homogeneous wrought hardened alloy steel rolls for processing ferrous and non-ferrous flat products.
Critical requirements include:
Melting process: Steel shall be made by the electric-furnace process, with optional additional refining via vacuum arc remelt (VAR) or electroslag remelting (ESR)
Hot working: Rolls receive their hot mechanical work under a press or hammer of ample capacity to work the metal throughout its section
Hardness ranges: A range of either 5 points Shore scleroscope or 100 numbers Vickers hardness is permissible
Hardness testing: Each roll must be tested and meet specified limits; the Shore HFRc scleroscope, Rockwell, Vickers, or Leeb tester may be used for compliance verification
Important note: ASTM A427/A427M explicitly requires conformance with ASTM A788/A788M, meaning all general requirements of the parent specification automatically apply.
For manufacturers and customers in the Asian market—which dominates global cold rolling capacity—GB/T 13314-2025 provides equivalent but distinct requirements. The 2025 revision introduces several significant updates compared to the 2008 version:
New Grades: 8Cr5Mo1V and 9Cr6MoV were added; outdated grade 9Cr2 was removed
Forging Ratio: Roll body forging ratio ≥3 is now mandatory for electro-slag remelted ingots
Internal Quality: Comprehensive requirements for low-power structures and non-metallic inclusions with specific rating levels
Hardened Layer Depth: New requirements for 6% chromium materials, with specific depth-by-diameter tables
Ultrasonic Testing: Updated standards for surface wave inspection and defect acceptance criteria
The most widely adopted alloy families for cold rolling mill rolls are based on the Cr-Mo-V system, with varying chromium content levels to optimize specific performance characteristics:
2% Chromium Steels (e.g., 8Cr2MoV)
Chemical composition: 0.80-0.90% C, 1.80-2.40% Cr, 0.20-0.40% Mo, 0.05-0.15% V
Ideal for: Smaller work rolls and intermediate rolls in lower-demand applications
Hardened layer depth: ≥6 mm for ≤300 mm roll body diameter at ≥95 HSD surface hardness
3% Chromium Steels (e.g., 9Cr2Mo, 9Cr2MoV, 9Cr3Mo)
Enhanced hardenability and improved wear resistance
Suitable for: General-purpose cold rolling work rolls
Hardened layer depth: ≥8 mm for ≤300 mm diameter at ≥95 HSD; ≥12 mm for 300-500 mm diameter at ≥95 HSD
5% Chromium Steels (e.g., 8Cr5MoV, 8Cr5Mo1V)
Chemistry: 0.70-0.95% C, 4.50-6.50% Cr, 0.20-1.40% Mo, 0.05-0.60% V, with controlled Ni and Cu residuals ≤0.25% and ≤1.00% respectively
Superior wear resistance and thermal stability
Hardened layer depth: ≥15 mm for ≤300 mm diameter at ≥95 HSD; ≥25 mm for 300-500 mm diameter at ≥95 HSD
6% Chromium Steels (e.g., 9Cr6MoV)
Highest wear resistance for demanding applications
Maximum hardened layer depth: ≥15 mm for ≤300 mm; ≥35 mm for 300-500 mm diameter at ≥95 HSD
Critical impurity control: Pb, Sn, As, Sb, and Bi are each limited to ≤0.02% to prevent hot shortness and temper embrittlement.
ASTM A788 provides detailed product analysis tolerances based on cross-sectional area of the forging. Key tolerance limits for common elements:
Carbon (0.26-0.55% range): ±0.04% for ≤100 in²; up to ±0.07% for >1600 in²
Chromium (0.91-2.10% range): ±0.07% for ≤100 in²; up to ±0.08% for >1600 in²
Molybdenum (0.41-1.15% range): ±0.06% for ≤100 in²; up to ±0.12% for >1600 in²
Vanadium (0.26-0.50% range): ±0.03% for ≤100 in²; up to ±0.04% for >1600 in²
Per GB/T 13314-2025, the preferred melting route is: Medium-frequency furnace or electric furnace (converter) → Ladle refining → Vacuum degassing → Electroslag remelting (ESR) . This sequence achieves:
Ultra-low inclusion content (A, B, C, D ≤1.5 with A+B+C+D ≤4.0)
Controlled carbide morphology (banding ≤2.0, liquation ≤2.0, network ≤2.0)
Uniform chemistry with minimal segregation (center porosity ≤2.0, ingot segregation ≤2.0)
ASTM A427 permits electric-furnace melting with optional VAR or ESR refining, but does not mandate specific processes.
Minimum forging ratio: GB/T 13314 specifies ≥3 for the roll body. This ensures:
Complete consolidation of the ESR ingot structure
Breaking up of cast dendritic structures
Development of directional grain flow for optimal mechanical properties
For rolls ≤6 inches (150 mm) diameter, ASTM A427 permits production from rolled bars instead of full forging.
The thermal processing sequence typically includes:
1. Pre-forging heating – Uniform soak above the transformation temperature
2. Post-forging cooling – Controlled cooling to prevent hydrogen-induced cracking and ensure complete austenite-to-ferrite transformation (per A788 Section 7)
3. Heat treatment – Quenching and tempering to achieve specified hardness range
4. Hardening – Method at the manufacturer's option per A427 Section 8
Critical parameter: Heat treatment soak temperatures shall be maintained within ±25°F (±15°C) of the control set point unless the working zone has been validated per ASTM A991/A991M or AMS 2750.
GB/T 13314 establishes three hardness grades for surface hardness, each with specific application recommendations:
Hardness Range (HSD) | Recommended Application |
≥95 | Finishing mills and skin-pass mills |
90–98 | Metal sheet/strip cold rolling work rolls |
75–90 | Breakdown (roughing) work rolls and intermediate rolls |
Uniformity requirement: Hardness variation across the roll body shall not exceed 3 HSD.
Neck hardness: Separate requirements apply based on bearing type:
35–50 HSD: Mounted inner ring bearings
50–65 HSD: Plain bearings (sleeve)
75–90 HSD: Bearings without inner ring
The effective hardened layer depth varies by diameter and hardness grade:
Roll Diameter (mm) | Surface Hardness (HSD) | 2% Cr | 3% Cr | 5% Cr | 6% Cr |
≤300 | ≥95 | ≥6 | ≥15 | ≥15 | ≥15 |
≤300 | 90 to <95 | ≥8 | ≥20 | ≥20 | ≥20 |
300–500 | ≥95 | ≥7 | ≥20 | ≥25 | ≥30 |
500+ | ≥95 | ≥8 | ≥20 | ≥25 | ≥30 |
Note: The 6% chromium grade offers superior depth for large-diameter rolls, making it ideal for high-tonnage aluminum and copper rolling operations.
Ultrasonic testing is mandatory for every roll and follows stringent protocols:
Testing conditions:
A-type pulse-echo ultrasonic flaw detector (meeting GB/T 27664.1)
Single crystal straight probe, 2–2.5 MHz frequency
Reference sensitivity: φ2 mm flat-bottom hole at maximum detection depth at 20% screen height
Scanning speed ≤150 mm/s with ≥15% overlap between adjacent passes
Material attenuation coefficient: Must be ≤0.004 dB/mm. Rolls failing this criterion require re-heat treatment.
Acceptance criteria by zone (Grade A quality):
Roll Diameter | Zone | Acceptance Standard |
≤300 mm | I (Surface) | No defect echoes at specified sensitivity |
≤300 mm | II (Middle) | ≤φ3 mm equivalent single echoes |
300–650 mm | I (Surface) | No defect echoes |
300–650 mm | II (Middle) | ≤φ4 mm single echoes; >φ3 mm spaced ≥150 mm; ≤5 defects per meter |
>650 mm | II (Middle) | ≤φ5 mm single echoes; >φ4 mm spaced ≥200 mm; ≤φ4 mm continuous echoes |
Rejectable defects: Cracks, white spots, shrinkage, and wandering echoes are absolutely prohibited.
Roll body and neck surfaces must be free from:
Visible cracks
Pitting or indentation
Non-metallic inclusions
Any defects that could affect performance
Surface roughness Ra shall be ≤1.6 μm unless otherwise specified.
Soft zone allowance: Edge softening is permissible per the following limits:
Roll Body Length (mm) | Maximum Permissible Soft Zone Width (mm) |
≤300 | ≤25 |
>300 to 600 | ≤45 |
>600 to 1000 | ≤50 |
>1000 to 2000 | ≤55 |
>2000 | ≤65 |
Note: For rolls requiring ≥95 HSD, the soft zone allowance increases by 20%.
The industry is shifting toward higher-alloy content roll materials. As the Chinese Cold Rolling Roll Industry Report 2025 highlights, "modern forged steel cold rolling rolls have significantly improved wear resistance and fatigue resistance through optimized alloy compositions and precisely controlled heat treatment processes". This trend is driven by:
Demand for higher rolling speeds – requiring superior thermal fatigue resistance
Thinner gauges – placing greater demands on roll surface quality
Harder alloys – rolling advanced aluminum grades requires rolls with exceptional wear resistance
Sustainability requirements – longer roll life reduces waste and energy consumption
Recent patent activity from JFE Steel demonstrates the industry's focus on advanced quality monitoring. Patent EP4406671B1 (granted November 2025) covers a method for determining rolling roll conformity based on vibration analysis of the stand and estimated surface shape evaluation, enabling predictive quality control without halting production.
The cold rolling mill market is being shaped by several key factors:
EV battery production – demand for ultra-thin copper foil for battery anodes
Lightweighting in automotive – growing use of aluminum and high-strength alloys
Infrastructure development – particularly in Asia-Pacific, which dominates global capacity additions
Energy efficiency requirements – increasingly stringent regulations driving modernization
Investment alert: The 2024–2035 forecast period shows Asia-Pacific continuing its market dominance, with North America and Europe focusing primarily on technology upgrades and modernization projects.
Every delivered forging must be accompanied by a test report containing:
Purchase order number
Forging identification number
Material specification number, year date, revision, and required class/grade
Heat number(s) and melt analysis
Completed mechanical property test results
Any non-destructive test results
Final heat treatment details (austenitizing temperature, tempering temperature, hold time, cooling method)
The extent to which product specification requirements have been met
Any supplementary or additional test results
Each roll shall be permanently identified on the end face of the journal (non-drive end, or either end for symmetrical rolls) with:
Manufacturer's name or mark
Manufacturer's identification mark or heat number
Product specification number
Required class, grade, and type marks
Purchaser's marking (if specified)
Important: ASTM A788 prohibits including the standard year date and revision in marking.
When specifying forged rolls for copper and aluminum cold rolling, consider these critical parameters:
Decision Factor | Recommendation |
Material grade | 5% or 6% Cr for high-tonnage, high-wear applications; 2% or 3% Cr for general-purpose applications |
Hardness | ≥95 HSD for finishing operations; 90–98 HSD for standard work rolls; 75–90 HSD for roughing/intermediate rolls |
Hardened depth | Specify depth based on expected re-grinding cycles; deeper layers provide longer service life |
Quality level | Grade A per GB/T 13314 for demanding applications; Grade B where more flexibility is acceptable |
Manufacturing standard | ASTM A427/A427M + A788/A788M for international shipments; GB/T 13314 for PRC market compliance |
The bottom line: Forged steel cold rolling mill rolls for copper and aluminum applications represent a high-technology product where material science, manufacturing precision, and rigorous quality control converge. Partnering with a manufacturer who demonstrates comprehensive understanding of both ASTM and GB/T requirements, coupled with modern ESR/VAR melting capabilities and full ultrasonic testing, ensures optimal roll performance and extended service life.
