Mold steel forgings form the core substrate of all high-volume manufacturing tooling, serving aluminum die casting, automotive stamping, plastic injection, hot forging, and aerospace component production worldwide. As global manufacturing shifts toward lightweight electric vehicle (EV) structures, integrated die-casting, and ultra-precision micro-molding from 2025 to 2026, demand for high-purity, uniformly structured mold steel forgings has surged 5.3% year-on-year, per 2026 global mold steel market forecasts. Unlike cast or rolled steel blanks, forged mold blocks deliver directional grain flow, eliminated internal porosity, balanced hardness-toughness ratios, and extended die service life—critical metrics for factories aiming to cut mold replacement downtime and total operational costs.
ASTM A681-2008 defines alloy tool steel forgings into eight core categories based on alloy composition and service temperature, while EN ISO 4957:2018 reorganizes grades into unalloyed cold work, alloy cold work, hot work, and high-speed tool steels with matched chemical tolerance limits and forging performance requirements. All grades below are suitable for open-die & closed-die forging production at Jiangyin Eternal Heavy Industry Co.,Ltd, with full melting analysis and piece test reports traceable to every forging batch.
Hot work forgings operate under cyclic thermal shock (200–1250°C) for aluminum die casting, copper extrusion, and hot automotive forging dies, requiring superior thermal fatigue resistance and hot hardness retention.

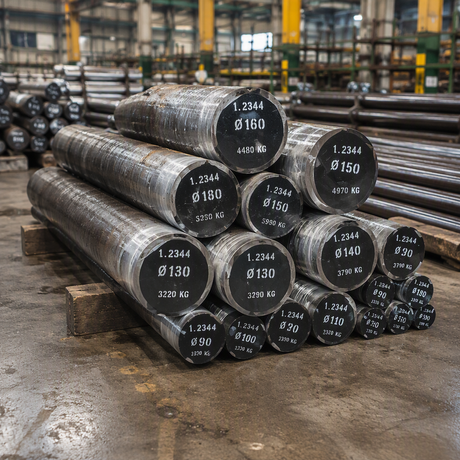

· ASTM A681 H11/H13 (UNS T20813 / T20812): Global mainstream die-casting steel, equivalent to EN X40CrMoV5-1 (1.2344). Standard composition limits per ASTM A681 mandate C:0.30–0.45%, Cr:4.75–5.50%, Mo:1.20–1.70%, V:0.80–1.20% with strict S/P ≤0.030% maximum impurities. Forging reduction ratio minimum 4:1 to break casting dendrites and homogenize carbide distribution. At Jiangyin Eternal Heavy Industry, H13 forgings adopt multi-directional upsetting & drawing forging to eliminate core segregation, meeting EN ISO 4957 macrostructure grading standards.
· ASTM H21/H24 tungsten hot work steels (EN X30WCrV9-3): High-temperature resistance for brass forging molds, ideal for long-cycle high-heat service; controlled slow heating forging prevents surface cracking during billet forming.
· ASTM H41–H43 molybdenum high-speed hot work variants: For ultra-high pressure hot extrusion tooling, requiring precise controlled finish forging temperature above 955°C per ISO 4957 process rules.
Cold work forgings serve room-temperature stamping, blanking, embossing, and plastic hard mold applications, prioritizing high wear resistance and air-hardening dimensional stability.

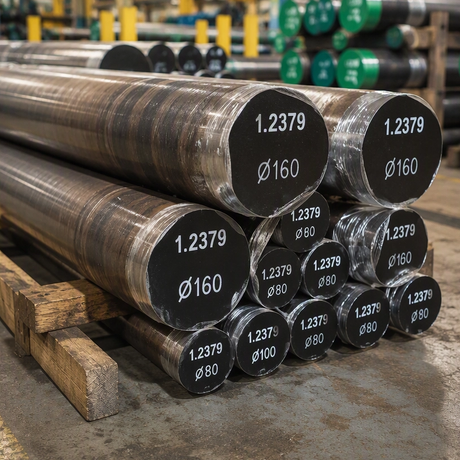

1. D-Series High Chromium Ledeburite Steels (ASTM D2/D7 / EN X153CrMoV12, 1.2379): High carbon 12% chromium forgings with extreme abrasion resistance for automotive sheet stamping dies. ASTM A681 enforces maximum decarburization depth limits for forged blocks, a critical defect controlled at Jiangyin Eternal Heavy Industry via post-forging spheroidizing annealing and surface grinding. Forging simulation software deployed at the company predicts carbide banding risk before production to eliminate premature die chipping.
2. A-Series Air-Hardening Cold Work (A2/A8/A9 ASTM): Low distortion forgings for precision plastic molds; low-carbon A8/A9 variants deliver superior toughness for large integrated EV battery shell stamping molds, a fast-growing 2026 market demand segment.
3. O-Series Oil-Hardening Low Alloy Steels (O1/O7): Small precision tool forgings, widely used for electronic connector molds, with tight dimensional forging tolerances per ASTM A681 Table 9–28 block specifications.
· Shock-resistant S-series forgings (S1/S7 ASTM): For heavy impact punching dies, balanced impact toughness after optimized forging grain refinement.
· P-series mold steels (P20/P21 ASTM / EN 1.2738): Pre-hardened forgings supplied ready for CNC machining without secondary heat treatment, the dominant material for consumer plastic injection molds in 2025–2026 global orders. Jiangyin Eternal Heavy Industry produces P20 forgings with controlled pre-hardened HB 280–320 hardness fully complying with ASTM A681 annealing hardness limits.
Traditional mold forging suffered uneven grain, carbide segregation, internal shrinkage, and excessive decarburization. The latest industrial processes adopted by premium manufacturers like Jiangyin Eternal Heavy Industry Co.,Ltd integrate digital twin simulation, ESR vacuum refining, staged slow heating, multi-pass directional forging, and closed-loop annealing—all aligned with ASTM A681 macrostructure and EN ISO 4957 heat treatment protocols. The full production workflow covers six standardized stages:
ASTM A681 mandates all alloy mold steel must be electric furnace melted, with ingots sufficiently forged to refine cast grain structures. Low-purity ingots cause severe segregation and shortened die life, so top suppliers implement Electroslag Remelting (ESR) as standard pretreatment:
· Control total gas content (O, H, N) below 20ppm to eliminate internal microporosity;
· Restrict trace harmful elements (Sn, Pb, Bi) under 0.13% total per EN ISO 4957 purity standards; Jiangyin Eternal Heavy Industry equips 8-ton ESR furnaces for high-grade H13, D2, and P20 mold ingots, with full spectral chemical test reports matching ASTM A681 Table 1 composition tolerance ranges before forging commences.
High-alloy mold steels (D2, H13) crack under rapid temperature rise, a long-standing production defect addressed by 2026 standardized heating curves:
1. Preheat stage: Ramp to 650°C, hold 2–6 hours based on billet cross-section to eliminate thermal stress;
2. Secondary heating: Gradually rise to target forging temperature (1100–1220°C, grade-specific);
3. Soaking rule: Minimum 1-hour holding per 25mm billet thickness to balance core-surface temperature, per Fraunhofer digital forging lab 2026 process research. Jiangyin Eternal Heavy Industry’s fully automated gas heating furnaces adopt PLC temperature closed-loop control, cutting thermal crack rejection rates by 72% vs conventional batch furnaces, while meeting EU low-carbon manufacturing requirements.
Forging reduction ratio is the most critical parameter defined by both standards: minimum total deformation ≥4:1 for all mold steel forgings, ≥6:1 for high-chromium D-series cold work grades to break continuous carbide networks.
· Process workflow: Initial upsetting (compress billet height 50–60%) → longitudinal drawing → cross-direction secondary upsetting to achieve 3D uniform grain flow;
· Digital simulation pre-production: The company deploys material microstructure simulation software to predict coarse grain zones at forging edges, adjusting press stroke and deformation volume virtually before physical production, reducing material waste and rework rates by 30% in 2025 mass production;
· Equipment advantage: Jiangyin Eternal Heavy Industry operates a 3000-ton fast open-die hydraulic forging press, capable of manufacturing mold blocks, round forgings, ring mold blanks ranging OD150mm–1000mm, maximum length 12,000mm, covering small precision inserts to ultra-large integrated EV die-cast mold basesEHI.
ASTM A681 Table 3 heat treatment test requirements tie final grain size directly to finish forging temperature:
· Hot work H-series: Finish forge ≥980°C;
· Cold work D/A-series: Finish forge ≥900°C, avoid low-temperature strain hardening cracking; All forgings at Jiangyin Eternal Heavy Industry record real-time forging temperature via infrared monitoring for full production traceability, a mandatory inspection item for global OEM customers’ factory audits.
Annealing directly determines machinability of forged mold blanks: ASTM A681 Table 2 specifies maximum allowable Brinell hardness for every grade, while EN ISO 4957 mandates uniform spheroidized carbide microstructure after slow cooling annealing. Process specifications at Jiangyin Eternal Heavy Industry: Cool forgings to 600°C post-forging, reheat to spheroidizing temperature, hold 8–16 hours, furnace cooling ≤20°C/hour to room temperature. Finished annealed forgings hit HB 229–262 standard ranges for H13, HB 248–285 for D2, eliminating hard carbide bands that cause CNC tool wear.
After annealing, forgings undergo rough machining, surface grinding to remove allowable decarburization layers defined in ASTM A681 Table 5–8, followed by a full multi-stage QC process aligned with dual international standards:
1. Chemical piece analysis per ISO 14284 sampling rules;
2. Macrostructure low-power etching test (ASTM A561 standard) to grade central porosity and segregation, maximum level 4.5 for large mold blocks;
3. Hardness testing per ASTM A370 / ISO 6506-1;
4. Ultrasonic non-destructive testing (NDT) to detect internal voids, cracks, inclusions;
5. Dimensional tolerance inspection matching ASTM A681 Table 9–28 for forged block/bar dimensional deviations.
Three core industrial shifts drive rising demand for high-standard forged mold blanks, creating clear procurement advantages for compliant manufacturers like Jiangyin Eternal Heavy Industry Co.,Ltd:
Major auto OEMs (BYD, Tesla, Volkswagen) expand gigapress integrated casting lines from 2025–2026, requiring ultra-large H13 (1.2344) forged mold bases up to 6-ton single block weight. These mega molds demand zero core segregation, consistent thermal fatigue resistance—only multi-directional heavy forging can deliver, eliminating performance defects seen in simple rolled steel plates. Global orders for large hot work mold forgings grew 18% year-on-year in 2026. Jiangyin Eternal Heavy Industry specializes in custom oversized H13 forgings for EV die casting manufacturers, with dedicated heavy-duty CNC machining centers for rough finishing delivery.
Lithium battery shell, pole piece, and foil rolling molds rely on D2, A2 forged blanks with ultra-uniform carbide distribution to extend stamping die lifespan. Policy support from China’s 2025 New Material Demonstration Directory prioritizes high-toughness cold work mold forgings, opening long-term bulk order channels for certified forging suppliers.
Medical device, cosmetic, and electronic plastic molds adopt pre-hardened P20 forged blocks to skip secondary heat treatment and shorten production lead times—a key 2026 cost-reduction trend for mold factories. Global buyers prioritize suppliers capable of stable controlled pre-hardness and zero surface decarburization, a core service of Jiangyin Eternal Heavy Industry’s P-series forging product line.
European and North American buyers now audit carbon footprint and digital process traceability alongside material standards. Manufacturers deploying simulation forging, energy-efficient furnaces, and full batch digital record-keeping gain competitive edge. Jiangyin Eternal Heavy Industry’s closed-loop heating waste heat recovery and full production data trace system satisfy EU green supply chain audit requirements for automotive and aerospace clients.
Each manufacturing sector selects forged mold steel grades based on ASTM A681 / EN ISO 4957 performance benchmarks, with Jiangyin Eternal Heavy Industry supplying custom forgings for all below verticals:
1. Automotive & EV Die Casting Grade match: ASTM H13 / EN X40CrMoV5-1 forged mold blocks for gigapress integrated aluminum casting dies, H11 for smaller zinc alloy molds. Forged grain flow resists thermal cracking under repeated molten aluminum impact, doubling service life vs cast mold substrates.
2. Sheet Metal Stamping & Forming Grade match: D2, A2 cold work forgings for high-volume automotive steel/aluminum blanking dies; S7 shock-resistant forgings for heavy impact punching tools. Strict forging reduction eliminates early edge chipping during millions of stamping cycles.
3. Plastic & Medical Injection Molds Grade match: P20 pre-hardened forgings for consumer plastic housings; D7 high-wear forgings for reinforced glass fiber plastic molds; corrosion-resistant modified mold forgings for medical disposable tooling, fully FDA-compatible raw material purity.
4. Hot Forging & Extrusion Tooling Grade match: H21, X30WCrV9-3 tungsten hot work forgings for copper/brass hot extrusion dies, maintaining hot hardness above 45 HRC at 1100°C operating temperatures.
5. Aerospace Precision Tooling Ultra-clean ESR-refined H13 and A8 forgings for lightweight composite forming molds, meeting aerospace-grade low inclusion limits per ASTM A68 supplementary ultrasonic testing requirements (S1 clause).
As a specialized mold steel forging enterprise with over 20 years of heavy forging experience located in Jiangsu’s Yangtze heavy industry belt, the company addresses core pain points of global mold buyers: inconsistent material performance, long lead times, non-standard compliance, and limited oversized forging capacity. Its differentiated strengths align with 2025–2026 international procurement demands:
1. Full Dual Standard Compliance (ASTM A681 + DIN EN ISO 4957) Every mold forging batch delivers dual standard test certificates, covering chemical composition, macrostructure, decarburization, hardness, and heat treatment performance. The internal QC laboratory is equipped with ASTM A370, ISO 6506 calibrated testing equipment, passing third-party SGS, BV factory audits for cross-border OEM supply.
2. Complete Integrated Production Capacity from Ingot to Finished Forging Self-owned ESR refining furnaces, 3000-ton fast forging press, full-spectrum annealing/quenching/tempering heat treatment lines, CNC rough machining workshops, and dedicated NDT inspection stations. One-stop custom service eliminates multi-supplier coordination delays, shortening delivery cycles by 15–25% compared to split-process vendorsEHI. Product range covers forged round bars, square mold blocks, rectangular plates, ring mold blanks, custom irregular die forgings in sizes OD150mm–1000mm, length up to 12m.
3. Digital Simulation Optimized Forging Technology (2026 Upgraded Process) Pre-production microstructure simulation avoids segregation and coarse grain defects, stabilizing batch performance consistency for high-volume global orders. Strict multi-direction upset-drawing forging process ensures uniform carbide distribution for D2, H13 premium grades, solving the common industry issue of uneven core hardness in large mold blocks.
4. Customized Solutions for EV Mega Mold & Precision Medical Molds Specialized oversized mold forging production line for 3–8 ton EV integrated die-cast bases; low-impurity ESR mold steel forgings meeting medical industry biocompatibility raw material standards, with controlled pre-hardened P20 series optimized for rapid CNC machining.
5. Global Supply Chain & After-Sales Technical Support Export-ready packaging complying with ASTM A700 and MIL-STD-163 shipping standards for overseas shipments; dedicated material engineering team providing grade selection, forging process, and heat treatment technical consultation matching local regional manufacturing standards (US ASTM, EU EN, Japanese JIS). Fast quotation, flexible MOQ for prototype small forgings and mass bulk orders.
Against the backdrop of booming EV manufacturing, lightweight component forming, and precision medical molding from 2025 to 2026, the value of high-standard, defect-free mold steel forgings has become irreplaceable for factories aiming to lower mold maintenance costs and boost production efficiency. Compliance with ASTM A681 and DIN EN ISO 4957 is the non-negotiable baseline to guarantee consistent die service life, while advanced digital forging, ESR purification, and controlled heat treatment separate top-tier suppliers from low-cost, low-performance competitors.
Jiangyin Eternal Heavy Industry Co.,Ltd stands as a reliable, vertically integrated mold steel forging partner for global industrial buyers, combining dual international standard production control, heavy-duty forging capacity, 20+ years of special steel processing expertise, and custom technical solutions for automotive, aerospace, plastic, and new energy mold manufacturers. Whether you require prototype small mold forgings, mass pre-hardened P20 blocks, or oversized ESR H13 gigapress die bases, the engineering team at Jiangyin Eternal Heavy Industry can provide tailored grade selection, process optimization, and certified full-test forgings with stable global delivery schedules.
Contact our technical sales team today to review your mold drawing specifications, receive free material grade consultation aligned with ASTM A681 / EN ISO 4957 standards, and get a competitive quotation for custom mold steel forgings.
