Microscopic Analysis: The "truth Digger" Behind The Heat Treatment Cracking

In the metalworking industry, quenching cracks are a common yet thorny problem. Once a workpiece cracks after heat treatment, the first reaction is often, "Something went wrong with the heat treatment." But is that really the case? Should heat treatment really take the blame for this?

Does heat treatment cracking always mean heat treatment is at fault?

"The part I gave you was fine. Then you heat-treated it and it cracked. If that's not your responsibility, whose is it?" This may sound reasonable, but in real production, the truth is often far less straightforward.

Heat treatment is only one step in the overall manufacturing process. It may be the triggering stage, but not necessarily the root cause. Was the incoming material itself defective? Did previous processes leave hidden risks? These questions can only be answered through systematic analysis.

If a heat treatment company cannot explain the cause of the cracking, it is often left to bear full responsibility. This pressure becomes especially acute when high-value workpieces are involved.

A True Case: When a 5-Ton Crankshaft Cracks, How Does the Heat Treatment Plant Clear Its Name?

There was once a heat treatment plant that processed a crankshaft weighing as much as 5 tons for a customer. The blank cost, initial forming cost, and heat treatment cost came to roughly 150,000 yuan in total. After heat treatment, the crankshaft cracked.

If the true cause could not be identified, the heat treatment plant would have to bear the entire loss. What was to be done?

The company chose to conduct a failure analysis. The analysis combined multiple methods:

• Composition testing: to verify whether the material composition met the standard

• Ultrasonic flaw detection: to check for internal defects

• Electron microscopy: to observe microscopic morphological features

• Metallographic analysis: to reveal the microstructure and the type of defect

The final finding: the root cause of the cracking was a defect in the material itself, not a problem with the heat treatment process. The complete inspection report convinced the customer, and the heat treatment plant avoided taking the blame, paying compensation, and suffering reputational damage.

Metallographic Analysis: The Core Method of Failure Analysis

Metallographic analysis is one of the important means of failure analysis, and it is also the method that can most directly reflect the internal microstructure of metallic materials. Using an optical microscope, we can observe the “skeleton” of the metal—its basic microstructure.

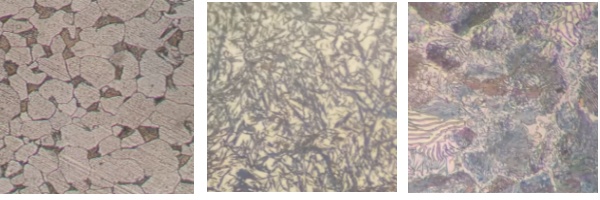

The basic structures of steel include:

However, these organizations are not static. The same organization can take on different forms under different production conditions.

Why does the same structure take on such different forms?

Ferrite: More Than Just "Body-Centered Cubic"

Ferrite refers to the phase with a body-centered cubic structure, but its morphology can vary widely:

• Equiaxed: commonly seen in the annealed condition

• Network-like: distributed along grain boundaries

• Blocky: locally aggregated

• Acicular: formed under specific cooling conditions

These morphological differences are precisely the "fingerprints" of different process states. It is like a person who can wear a suit, sportswear, or casual clothes — the appearance differs, but the essence remains the same person.

Martensite: The Process Code Behind Its Morphology

Martensite is theoretically a supersaturated α phase, with carbon or alloying elements dissolved in it. Its morphological variations are remarkably rich:

• Hidden acicular martensite: appears as a dark patch under the microscope, with acicular features difficult to distinguish

• Fine acicular martensite: fine needles

• Coarse acicular martensite: coarse needles

• Lath martensite: predominantly lath-like under low-carbon conditions, and also varying in coarseness

Why does martensite have so many morphologies? The main influencing factors include:

• Carbon content: high carbon content tends to form acicular martensite; low carbon content is dominated by lath martensite

• Austenite grain size: coarse grains produce coarse martensite needles; fine grains produce short, fine martensite needles

• Formation mechanism: martensite forms by shear, transforming instantaneously, and the prior austenite state directly influences the final morphology

Pearlite: Not a "Phase," but a "Structure"

Pearlite is not a single phase, but a mixture of ferrite and cementite, arranged in a lamellar distribution, resembling a "sandwich cookie" structure.

Pearlite also exhibits rich morphological variations:

• Coarse lamellar pearlite: relatively large interlamellar spacing, clearly distinguishable under an optical microscope

• Fine lamellar pearlite: smaller interlamellar spacing

• Very fine pearlite (troostite): extremely small interlamellar spacing, indistinguishable under an optical microscope, appearing as a dark patch, requiring electron microscopy for observation

• Granular pearlite: after spheroidizing annealing, cementite is distributed as spheroids in the ferrite matrix

The value of metallographic analysis: From "seeing" to "understanding"

Many people look at metallographic structures under a microscope, yet fail to recognize what they are seeing. The problem lies in a lack of familiarity with basic microstructures. To truly leverage the power of metallographic analysis, one must start by understanding basic microstructures and grasping:

• Under what conditions does a given microstructure form?

• Why does the same microstructure exhibit different morphologies?

• What process states do these morphological differences correspond to?

The significance of metallographic analysis lies not only in "seeing" the microstructure, but in "understanding" the process logic and failure causes behind it.

Conclusion: Make metallographic analysis a "fortress" for heat treatment

Heat treatment is a complex process with numerous contributing factors. The value of metallographic analysis lies in helping us identify these factors and, through logical reasoning, determine the truly relevant ones.

When dealing with heat treatment cracking, do not rush to conclusions. Let metallographic analysis reveal the truth and identify the root cause—that is the correct approach to solving the problem.

For heat treatment companies, building a comprehensive failure analysis capability is not only a means of self-protection but also an important way to enhance technical strength and customer trust.
